Model Fitting and Evaluation

Preparing the Data

We will use the CIFAR-10 dataset for this example. The CIFAR-10 dataset consists of 60,000 32x32 color images in 10 classes, with 6,000 images per class. There are 50,000 training images and 10,000 test images. This dataset is included in both Pytorch and Tensorflow.

In the paper, The image is resized with its shorter side randomly sampled in [256, 480] for scale augmentation. A 224×224 crop is randomly sampled from an image or its horizontal flip, with the per-pixel mean subtracted. The standard color augmentation in is used.

To resize the images, we will define a custom transformation that will randomly resize the images to a size between 256 and 480. The class RandomResize is inherited from the transforms.Resize class. And we use pipelined transformations to resize, crop, flip, and normalize the images. Note that the mean and std of the CIFAR-10 dataset are [0.4914, 0.4822, 0.4465] and [1.0, 1.0, 1.0], respectively.

Since we are using Google Colab, the batch size is set to 256. The batch size is the number of images that will be processed in each iteration.

class RandomResize(transforms.Resize):
    def __init__(self, min_size=256, max_size=480, interpolation=transforms.InterpolationMode.BILINEAR):
        super().__init__(size=1)
        self.min_size = min_size
        self.max_size = max_size
        self.interpolation = interpolation

    def forward(self, img):
        size = torch.randint(self.min_size, self.max_size + 1, (1,)).item()
        short, long = min(img.size[1], img.size[0]), max(img.size[1], img.size[0])
        if short == img.size[0]:
            ow, oh = size, int(size * long / short)
        else:
            ow, oh = int(size * long / short), size
        return F.resize(img, (oh, ow), self.interpolation)

mean = [0.4914, 0.4822, 0.4465]
std = [1.0, 1.0, 1.0]

transform = transforms.Compose([
    RandomResize(),
    transforms.RandomCrop(224),
    transforms.RandomHorizontalFlip(),
    transforms.ColorJitter(brightness=0.4, contrast=0.4, saturation=0.4, hue=0.1),
    transforms.ToTensor(),
    transforms.Normalize(mean=mean, std=std)
])

train_set = datasets.CIFAR10(root='./data', train=True, download=True, transform=transform)
train_loader = torch.utils.data.DataLoader(train_set, batch_size=256, shuffle=True)

test_set = datasets.CIFAR10(root='./data', train=False, download=True, transform=transform)
test_loader = torch.utils.data.DataLoader(test_set, batch_size=256, shuffle=False)

Training the Model

No matter which framework you use, the process of training a model is similar. You need to define a loss function, an optimizer, and a device to run the model on. Then, you need to iterate over the dataset, calculate the loss, back-propagate the gradients, and update the weights.

In our case here, we are using the CrossEntropyLoss as the loss function and the Adam optimizer. The epoch is set to 100, which means the whole dataset will be passed through the model 100 times.

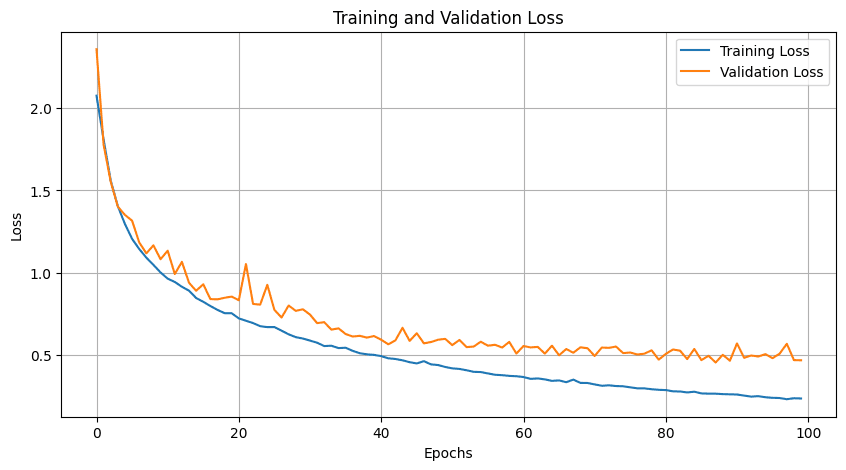

And a good practice is to document the training process by printing the loss at each epoch.

criterion = torch.nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(model.parameters(), lr=0.001)
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
model.to(device)

train_losses = []
val_losses = []

for epoch in range(100):
    model.train()
    train_loss = 0.0
    for inputs, labels in train_loader:
        inputs, labels = inputs.to(device), labels.to(device)

        optimizer.zero_grad()
        outputs = model(inputs)
        loss = criterion(outputs, labels)
        loss.backward()
        optimizer.step()

        train_loss += loss.item()

    avg_train_loss = train_loss / len(train_loader)
    train_losses.append(avg_train_loss)

    model.eval()
    val_loss = 0.0
    with torch.no_grad():
        for inputs, labels in test_loader:
            inputs, labels = inputs.to(device), labels.to(device)
            outputs = model(inputs)
            loss = criterion(outputs, labels)
            val_loss += loss.item()

    avg_val_loss = val_loss / len(test_loader)
    val_losses.append(avg_val_loss)

    print(f'Epoch {epoch+1}, Training Loss: {avg_train_loss}, Validation Loss: {avg_val_loss}')

Evaluating the Model

This step is used to evaluate the model's performance on the test dataset. The model is set to evaluation mode, and the gradients are turned off. Then, the model is passed through the test dataset, and the accuracy is calculated.

model.eval()
correct = 0
total = 0
with torch.no_grad():
    for inputs, labels in test_loader:
        inputs, labels = inputs.to(device), labels.to(device)
        outputs = model(inputs)
        _, predicted = torch.max(outputs.data, 1)
        total += labels.size(0)
        correct += (predicted == labels).sum().item()

print(f'Accuracy: {100 * correct / total}%')

Show Results

Although this step is not necessary, it is always good to visualize the results to better understand the model's performance. In our case, four images are selected from the test dataset, and the model's prediction is compared with the actual label.

images, labels = next(iter(test_loader))
images = images[:4]
labels = labels[:4]

images = images.to(device)
labels = labels.to(device)

model.eval()
with torch.no_grad():
    outputs = model(images)

predicted_labels = torch.argmax(outputs, dim=1)

fig, axs = plt.subplots(2, 2, figsize=(10, 10))

for i in range(len(images)):
    axs[i // 2, i % 2].imshow(images[i].cpu().numpy().transpose((1, 2, 0)))
    axs[i // 2, i % 2].set_title(f"Predicted: {predicted_labels[i].item()}, Actual: {labels[i].item()}")

plt.show()
